Acoustic-Lightboard

Modern design increasingly uses hard materials such as glass, steel, and stone. While beautiful, these materials reflect sound, amplifying noise and distractions. Acoustic-Lightboard® allows you the design flexibility you need while outperforming the competition in noise control. With extensive choices in top finishes, you can achieve your desired design vision without sacrificing the acoustic performance of your space.

Acoustic-Lightboard® Features:

  • Up to 70% lighter in weight than most other products.
  • Excellent sound absorption coefficient at all frequencies with our optimized honeycomb technology.
  • Over 320,000 perforations per square meter creates pleasant acoustics for offices to large halls.
  • Test procedures in accordance with DIN13501-1, SBI test method according to DIN EN 13823 and ASTM E 84 (USA).

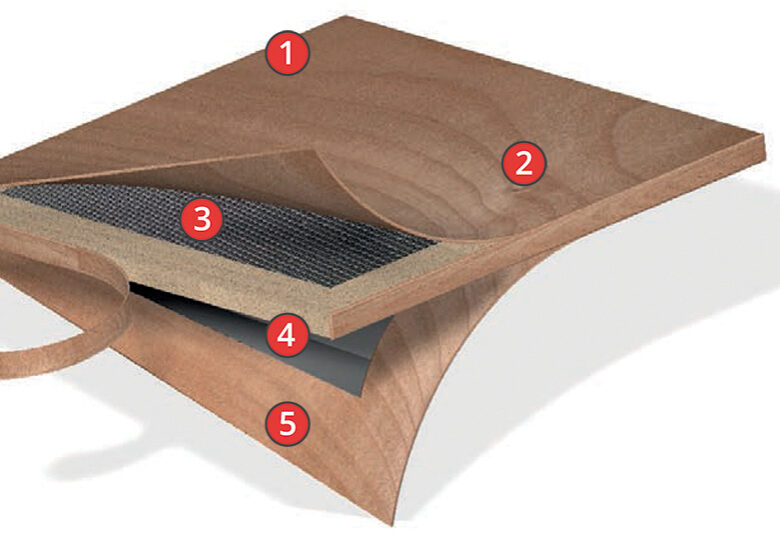

Components

panel components

AL Components

1 Front high pressure laminate or wood veneer with hole patterns
2 Un-perforated edge border (depends on hole pattern)
3 Internal honeycomb strcuture with a rigid perimeter frame design
4 Black acoustical fleece
5 Perforated back surface

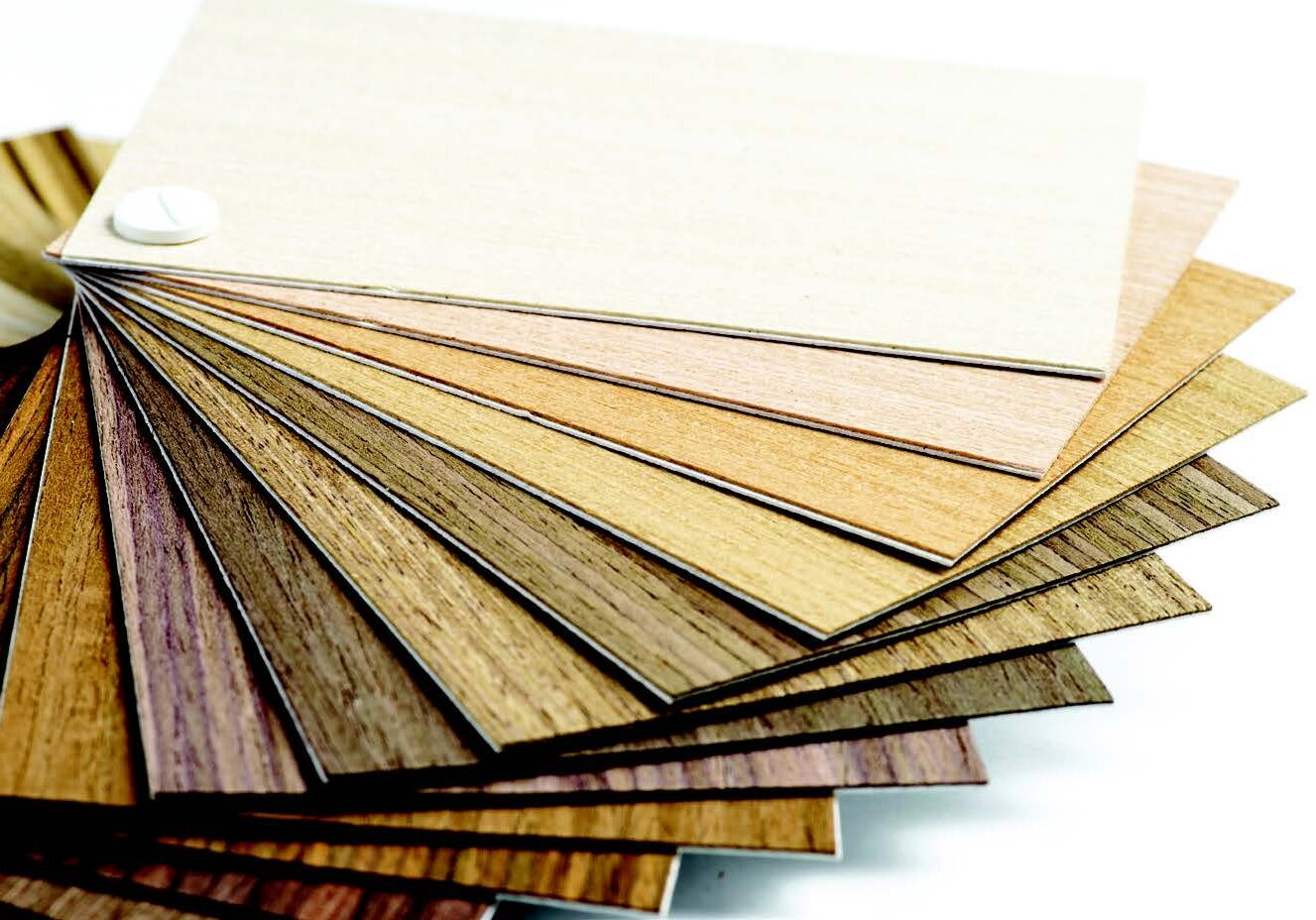

wooden tile samples

Surface Materials

High pressure laminates and wood veneers are perforated with the highest precision from 0.5mm to 1.5mm diameter perforations. The front and back surfaces of Acoustic-Lightboard® are available with an entire range of precise perforations.

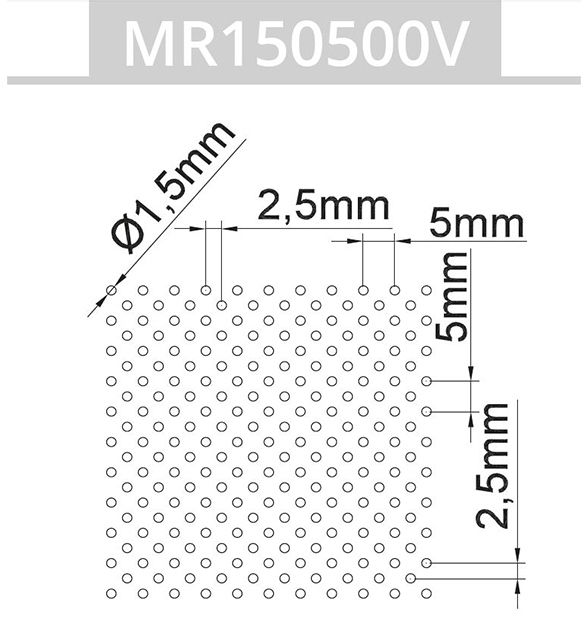

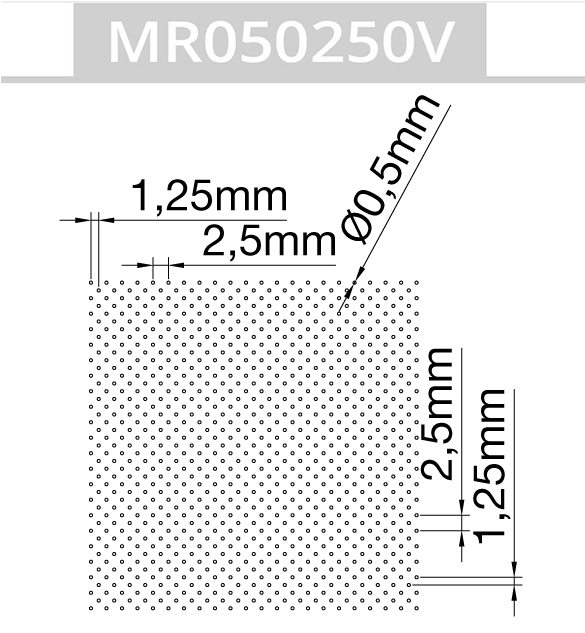

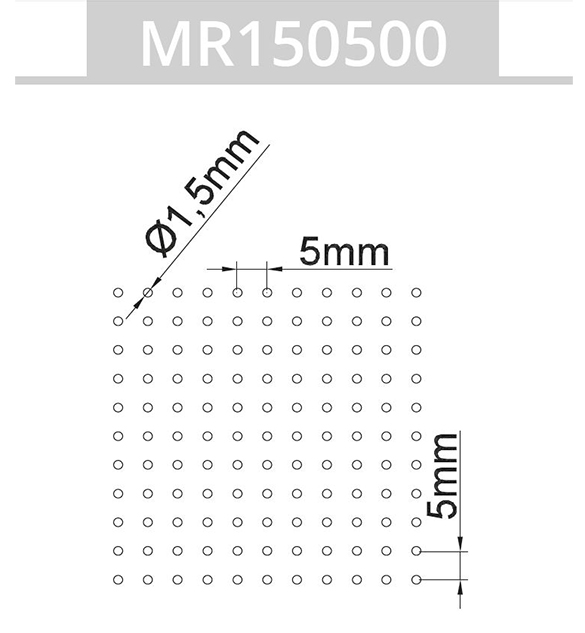

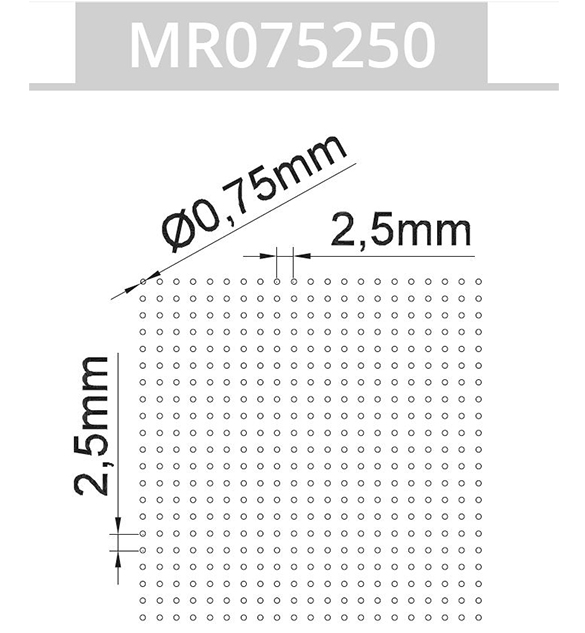

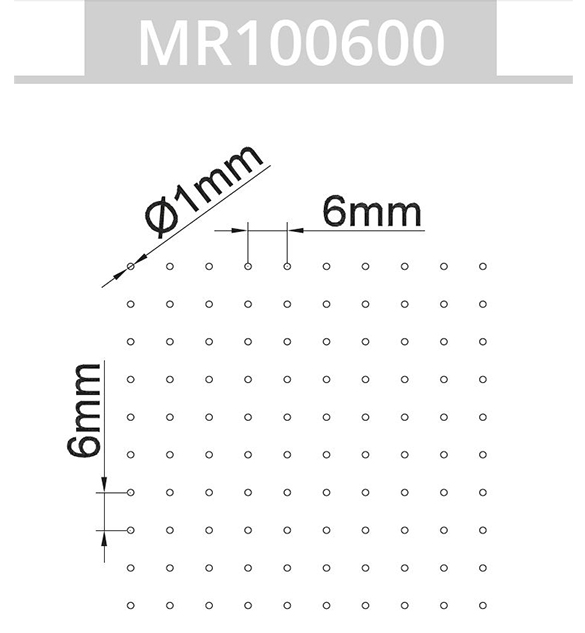

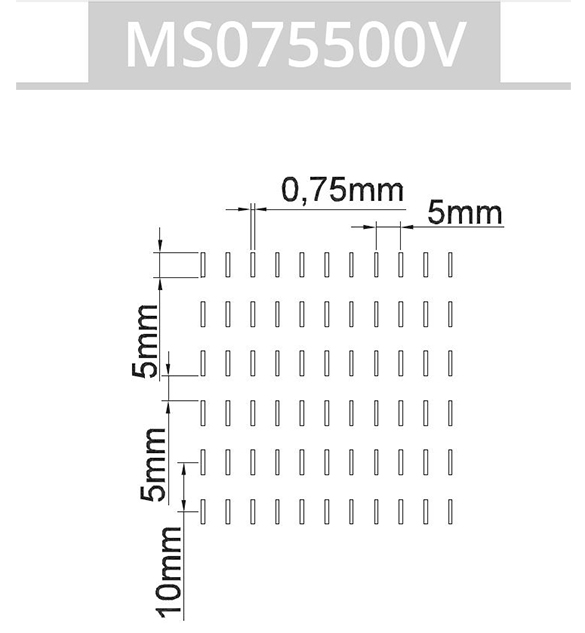

Perforations

Various perforations from bold patterning or barely visible are available in diameters of 0.02 to 0.06 inches.

measurements of circles
measurements of circles
measurements of circles
measurements of circles
measurements of circles
measurements of circles
measurements of circles
measurements of circles
measurements
measurements

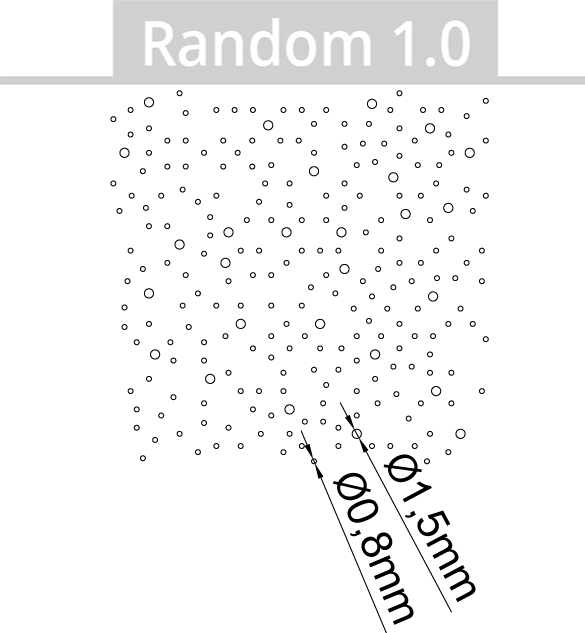

random circle measurements
