Acoustic Grilles

Space design while managing sound!



Acoustic-Grilles give a modern linear look while giving you a multitude of choices in design.  Bring in the warmth of wood with rich wood veneer or high definition HPL.  Create a truly unique look with stone veneer.  If industrial chic is the vibe you are going for use real concrete veneer.



Acoustic Grilles consist of vertical lamellas which can be manufactured  with different surfaces and dimensions. The connection of the lamellas among each other is done either by means of aluminum tubes or wood material strips (backer). The installation can be panelized or seamless.



Acoustic Grilles Features:

  • Sleek modern look
  • Fire retardant and moisture resistant
  • Add acoustical wool above for enhanced sound absorption
  • Completely customizable: surface, size, shape. Design Freedom.

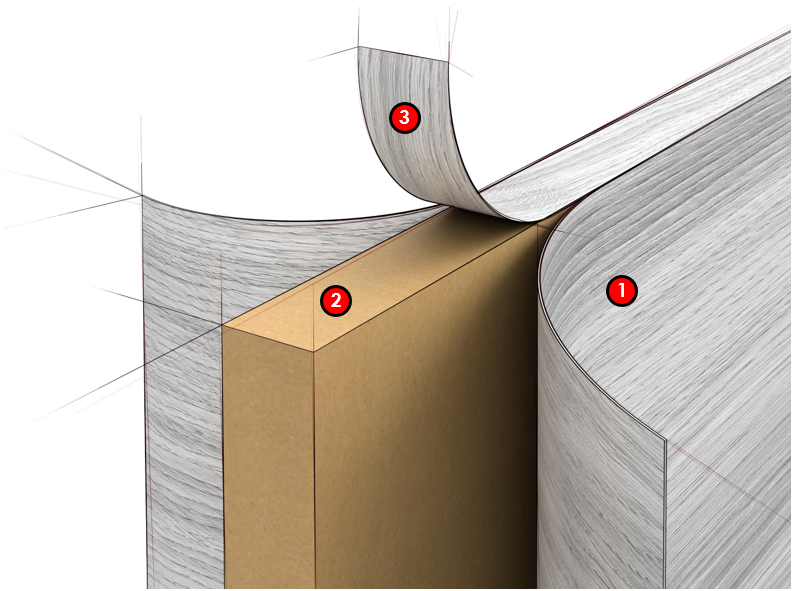

Material Structure

Acoustic Grilles

  1. Surface Material
  2. Wood-based structure (particle board, MDF)
  3. Edging (Veneer, ABS, Melamine)
Grilles material construction

Technical Data

Length (max.) 500 – 2700 mm (19 11/16“ to 106 5/16“)
Width (max.) 305 mm (12“ - depending on selected grid)
Slat Height 45 - 150 mm (1 3/4“ to 5 7/8“)
Slat Thickness 12 - 51 mm (1/2“ to 2“)
Weight approx. 9 - 30 kg/m² (1.84 - 6.15 lbs/sqft - depending on dimensions and selected grid)
Slat Material Available Wood Veneer, HPL, Concrete Veneer, or Stone Veneer
Noise Reduction Coefficient (NRC) .85 (85% of the sound is being absorbed and not reflected)

Surfaces

High Pressure Laminates (HPL)



HPL’s have come a long way in appearance.  It is difficult to tell the difference between real wood or stone and their HPL faux counterpart.  There are hundreds of choices in wood, stone, and solids.



Our HPL (High Pressue Laminate) source is Egger:

Wooden texture floor maple. Samples of laminate and vinyl floor.

Wood Veneers



Real and natural, that's the charm of wood veneers. In addition to species of wood shown, we can also match your design choice. Please contact us.

wood veneers

LightBeton® Concrete Veneers



Real Concrete made lightweight - choose from the variety of our authentic LightBeton® surfaces

LightBeton colors

Stone Veneers



Our genuine stone veneer brings biophilic design into your space.

Stone veneers

Lighting

Combine with existing lighting or incorporate LED Strips.

Existing Lighting Grilles

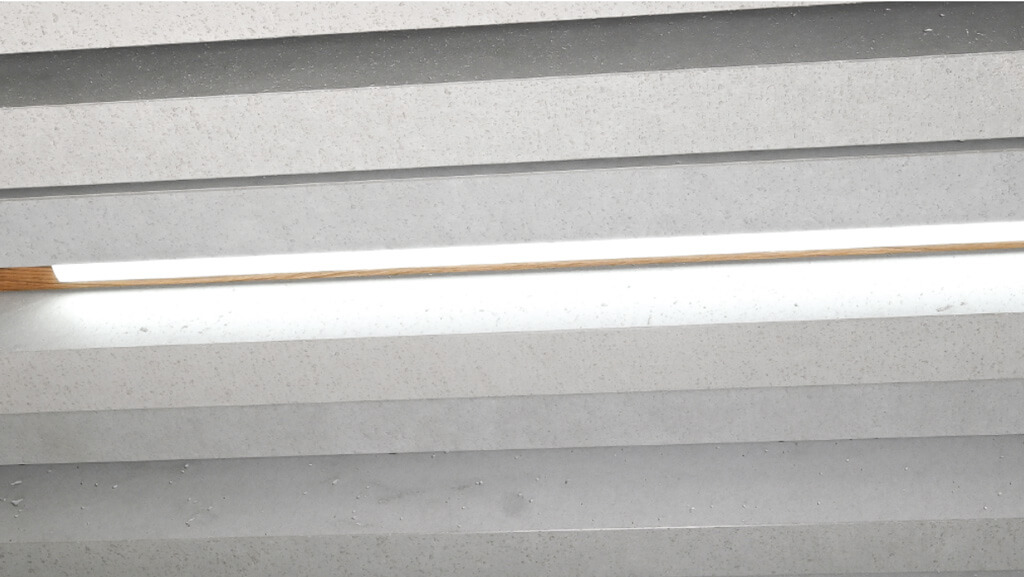

LED strips Grilles
