RibPanel and RibPanel Slim

RibPanels are strips of your choice of material and color fuzed to an acoustic felt support creating a clean linear vertical pattern.



The panels is supplied in a standard nominal size of 2’ x 9’ and can be installed as accent panels or a seamless wall treatment.



The new RibPanel Slim creates the same great aesthetic at a more economical price point without sacrificing performance.



RibPanels and RibPanels Slim are truly where form meets function. With the multitude of surface strip options in both material and color, you can create the look and reduce the sound.



RibPanel and RibPanel Slim Features:

  • Easy to install
  • Suitable for wall or ceiling
  • Fire retardant materials available

Material Structure

RibPanel

RibPanel Material Structure
  1. Surface Material
  2. Natural MDF (alternatives on request)
  3. PET Felt Black (alternatives on request)



RibPanel Slim

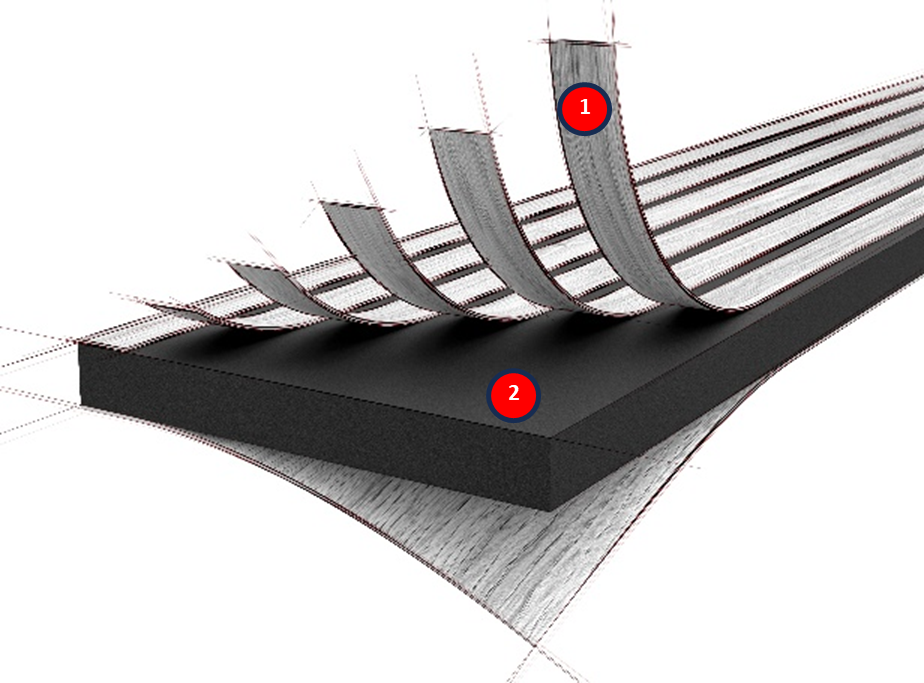

RibPanel Slim Material Structure
  1. Surface Material
  2. PET Felt Black (alternatives on request)

Technical Data

Length 2790 mm (109 13/16") 2790 mm (109 13/16")
Width 600 mm (23 5/8") 240 mm (9 7/8")
Thickness approx. 21.5 mm (≈7/8“ - depending on selected surface material) approx. 19.0 mm (3/4“ - depending on selected surface material)
Slat Material Available Wood Veneer, HPL, Concrete Veneer, or Stone Veneer HPL
Slat width 27 mm (1 1/16“ - depending on selected pattern) 27/47mm (1 1/16“ - 1 5/8“ - depending on selected pattern)
Slat Thickness approx. 12.5 mm (1/2“ - depending on selected surface material) 13 mm (1/2“)
Acoustic Felt Thickness 9 mm (≈3/8“) 18 mm (11/16“)
Weight 8.5 - 12.5 kg/m² (1.74 - 2.56 lbs/sqft - depending on selected surface material and dimensions) 4.5-9 kg/m² (0.92 - 1.84 lbs/sqft) (depending on selected surface material and dimensions)

Surfaces

High Pressure Laminates (HPL)



HPL’s have come a long way in appearance.  It is difficult to tell the difference between real wood or stone and their HPL faux counterpart.  There are hundreds of choices in wood, stone, and solids.



Our HPL (High Pressue Laminate) source is Egger:

Wooden texture floor maple. Samples of laminate and vinyl floor.

Wood Veneers



Real and natural, that's the charm of wood veneers. In addition to species of wood shown, we can also match your design choice. Please contact us.

wood veneers

LightBeton® Concrete Veneers



Real Concrete made lightweight - choose from the variety of our authentic LightBeton® surfaces

LightBeton colors

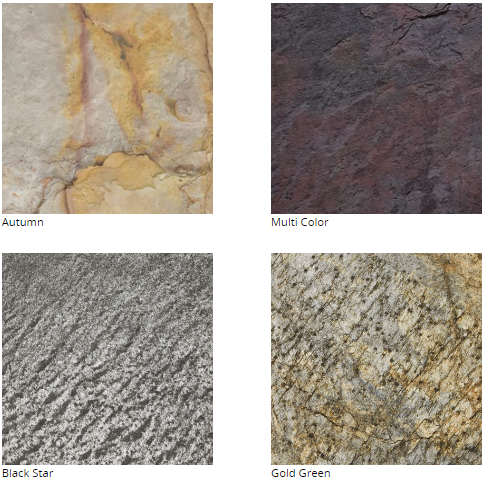

Stone Veneers



Our genuine stone veneer brings biophilic design into your space.

Stone veneers

Patterns

Pattern 12380
Pattern 013270
Pattern 900310
